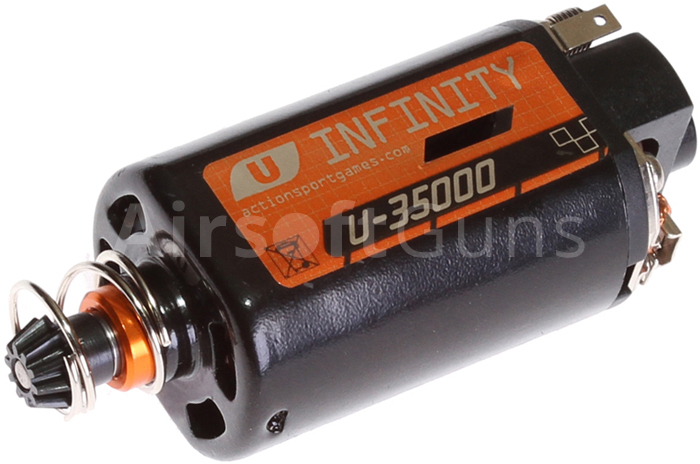

Short motor, INFINITY U-35000, SS, NT, ASG

Short infinity motor U-35000 (standard speed/torque normal) for AK type/AUG/M1A1/G36/M14/M249 from the brand ULTIMATE. Version U-35000 offers a standard rotation speed (35,000 RPM at 12V) and the mean torque. The motor is also equipped with super strong magnets (Neodymium), hardened steel pinion with a hardness of 50-55 HRC and larger brushes with the addition of silver for longer life and greater conductivity.

Sorry, but this product is out of stock.
We could inform You about restocking.

79,60 € incl. VAT

Short infinity motor U-35000 (standard speed/torque normal) for AK type/AUG/M1A1/G36/M14/M249 from the brand ULTIMATE. Version U-35000 offers a standard rotation speed (35,000 RPM at 12V) and the mean torque. All motors have INFINITY hand wound and balanced rotor that warrants high performance and low vibration. With the latest patented technology require less maintenance, longer life and are fully removable and thus easy maintenance can be performed. Ball bearings guarantee low friction for steel axis of rotor and perfect stability, which is an essential aspect of the motor. The special construction of the rotor acts like a turbine, which prevents ingress of external undesired impurities while it can effectively self-clean inside of the motor from carbon dust. Another unique feature is a suction inlet opening in the motor casing, which allows air flow and thus leads to favourable cooling of the entire motor. The head of the motor is of solid polymer to completely avoid the potential risk of a short circuit across the outer conductive portion. The motor is also equipped with super strong magnets (Neodymium), hardened steel pinion with a hardness of 50-55 HRC and larger brushes with addition of silver for longer life and greater conductivity. When properly chosen line-up, the motor can use up to M160 spring.

  Motor ULTIMATE INFINITY Motor genuine
hardness pinion over 55 HRC 40-50 HRC
speed deviation +/- 5% +/- 10%
effective efficiency 75-85% 55-70%
the temperature under load 40 °C 80 °C
bearings/bushings ball ball/oilless
carbon brushes large (Ag) standard

.Our service has been installing these motors since 2011. They are used for extra-strong springs for weapons with high rate of fire. According to past experience, we can confidently say that the old king of Systema motors is dead. Long live the new king ULTIMATE INFINITY - best motor now!
